Reversible Mixer - SRD 800


Know price now    Enquire Now



Discharge opening projected

  • Proper discharge of concrete without any wastage. Has a long life without any damages of discharge edge.

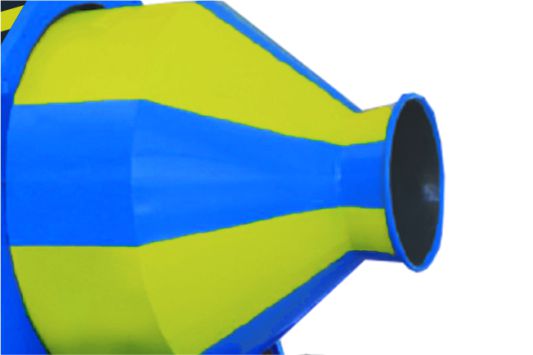

Drum and Blade - ST52

  • Drum and its blade are made of Special wear resistance material (ST-52) with more thickness of 6mm sheet. Long life of drum without any wear and tear.

Superior Paint Finish

  • Special paint to sustain concrete contact: 1 Coat activator, 1 coat primer, 1 Coat of paint Superior finish are used and has life long corrosion protection.

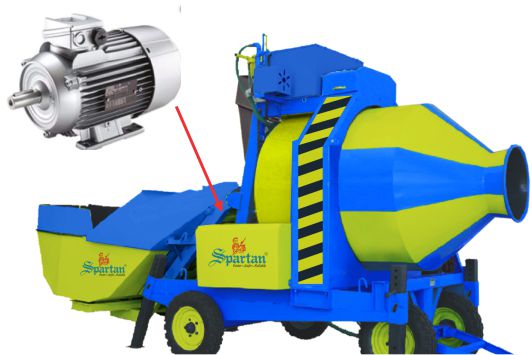

IE2 Power Efficient Motor

  • Siemens make IE2 power efficient motor and has a reliable motor with low power consumption.

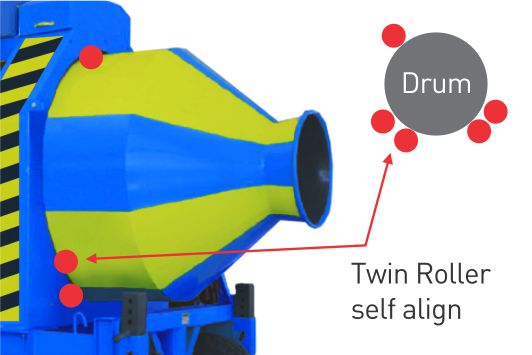

Guide Roller

  • 5 Nos. Guide Roller give smooth and noise free rotation. Self aligned twin rollers give smooth and noise free rotation.

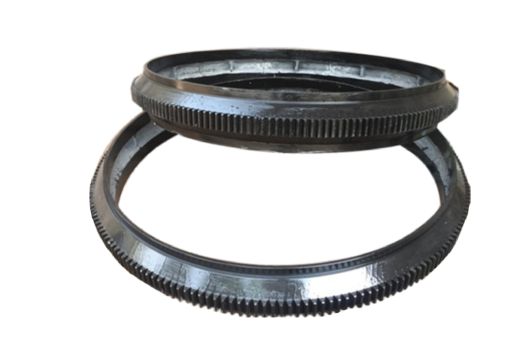

Gear Ring

  • Gear rings are made of high grade material of EN9 casting. Able to sustain load impact. High grade material gear ring sustains load impact less wear and tear.

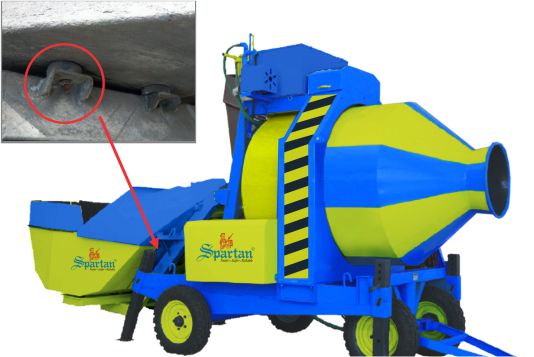

Rubber Pad

  • Rubber pad below hopper bin and frame to avoid noise and damage during aggregate loading. Prevents noise and damage of hopper bins.

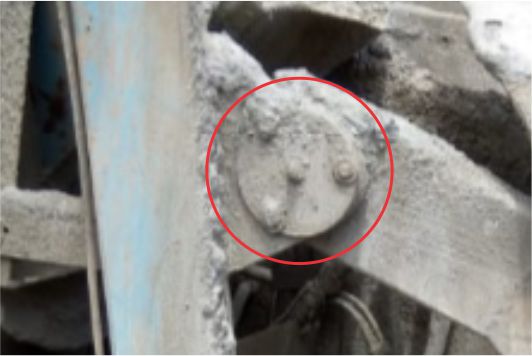

Bush Bearing

  • Bush bearings on hinge points makes it robust to sustain aggregate loading weight.

Gear Ring

  • Additional sheet packing at vibrator mounting to prevent sheet tearing. Prevents sheet tearing of vibrator mounting hopper.

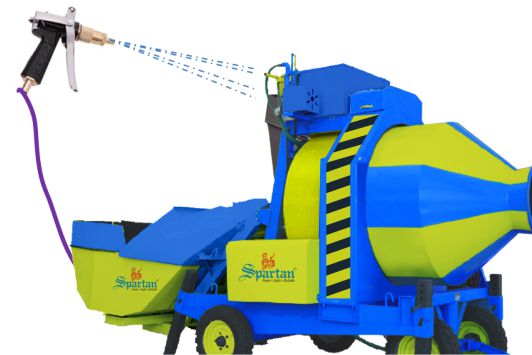

Jet Gun connection

  • Jet gun connected with water pumping motor to clean the machine. It helps timely cleaning of the mixture.

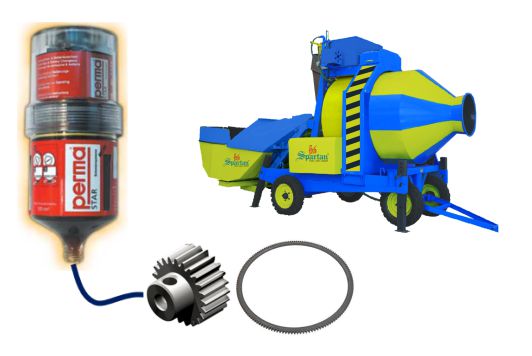

Auto Lubrication

  • Auto lubrication to gear ring and pinion. It Increases life of gear ring and pinion also smooth noise free rotation of drum.

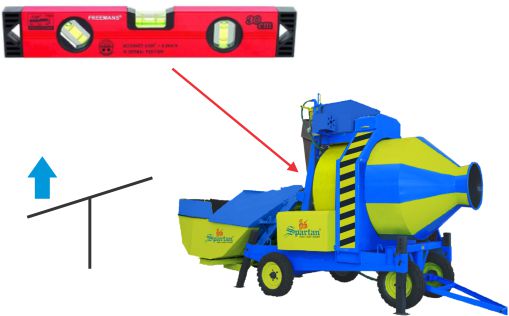

Spirit Level Indicator

  • Spirit level indicator attached on machine chassis to ensure proper leveled mounting of the machine. Ensures proper leveled mounting of the machine.

Technical Specifications

Hopper Capacity 800 Litres.
Batch Capacity 600 Litres.
Machine Output/Hour* 10-12 M3
Main Motor Drum 20 HP Diesel Engine
Water Pump Machine
Vibrating Motor NA
Water Dozing NA
Water Tank Capacity 170 Litres.
Weighing System Load Cell Based Weighing System With Digital Display
Hydraulic Pump 29 lpm/tdp@200 bar
Gear Ring & Roller Accurate Machined With Gear Cutting Operation Supported by Heavy Duty Roller Guide
Wheels Pneumatic Wheels
(4 Nos.)6 * 16
Jack Leveling Pin Type (4 Nos.)
Special Attachment Fitted With Each Machine A) Special Design if Hopper Vibrator
B) Centralised Lubrication System
